Profiles
U-Panel
- Coverage Width: 36" (inches)
- Rib Height: 3/4" (inches)
- Rib Spacing: 6" on center
- Standard Gauge: 26-gauge
- Minimum Slope: 1:12 (requires tape sealant for roofs)
- Attachment: Exposed fastener system (color-matched screws)
- Panel Length: Custom cut to lengths ranging from 5' to 50
PBR- Panel
Coverage Width36 inches
Rib Height1.25 inches (1-1/4")
Rib Spacing12 inches on center (4 main ribs per panel)
MaterialGalvalume® coated steel
Standard Gauges26 ga (standard), 24 ga (structural/heavy duty)
Minimum Roof Slope 1:12
Panel LengthsCustom cut lengths, typically ranging from \(5'\) to \(50'\)

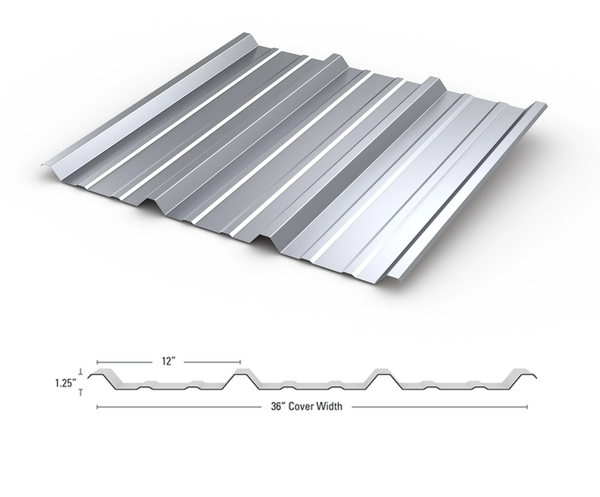

R-Panel
Panel Coverage36" (inches)
Rib Height1.25" (1 \(\frac{1}{4}\)")
Rib Spacing12" on center
Standard Gauges26 ga (standard), 24 ga
Optional Gauges22 ga
Minimum Roof Slope 1:12
Fastener SystemExposed Fasteners
Panel LengthsCustom cut lengths, typically ranging from \(5'\) to \(50'\)
Standing Seam
- ON-SITE
- CALL TO ORDER
SHEET METAL COLORS
Please call for availability
Polar White
Add a description about this item
Light Stone
Add a description about this item
Matte Black
Add a description about this item
Koko Brown
Add a description about this item
Galvanized
Add a description about this item
Ash Gray
Add a description about this item
Burnished slat
Add a description about this item
